Quiet Automatic Cartoning Machine for Foil Rolls Noise Levels Below 80 dB

Quiet Automatic Cartoning Machine for Foil Rolls Noise Levels Below 80 dB

Marchio:	LIKEE
numero di modello:	LK-C500

Informazioni dettagliate

Descrizione di prodotto

Informazioni dettagliate

Luogo di origine:

Shanghahi, Cina

Certificazione:

CE, SGS, ISO9001, and ISO14001

Nome del prodotto:

Astucciatrice automatica

Materiale applicabile:

Rulli di foglio

Punto chiave di vendita:

Basso rumore

Livello di rumore:

Sotto gli 80dB

Automazione:

Completamente automatico

Velocità:

30-60 scatole/min

Energia:

380V, 3PHASE, 50HZ

Descrizione di prodotto

Quiet Automatic Cartoning Machine for Foil Rolls Noise Levels Below 80 dB

Product Overview

The LK-C500 Automatic Cartoning Machine for Foil Rolls is a high-efficiency, intelligent, and low-noise packaging solution specifically engineered for rolled products such as aluminum foil and cling film. This all-in-one system seamlessly integrates automatic feeding, smart carton opening, precise product insertion, hot-melt gluing, secure sealing, and waste rejection. Its scientifically optimized structural design simplifies daily operation and maintenance, delivering a quiet, safe, and high-throughput automated packaging process.

Core Highlights & Features

Ultra-Low Noise Operation (Below 80 dB)
Engineered with optimized mechanical structures and a silent driving system. The operational noise is strictly kept below 80 dB even during full-capacity production, fully complying with international workplace health and safety standards.
Intelligent Control & HMI (PLC & Touch Screen)
Utilizes an advanced servo/motor controller combined with a responsive PLC and user-friendly touchscreen interface. The system delivers rapid response, a high degree of automation, and an intuitive operating experience.
Photoelectric Detection System (Zero Material Waste)
Equipped with high-precision photoelectric tracking and monitoring. The smart "no product, no carton" mechanism prevents empty boxing, drastically reducing packaging material waste and lowering production costs.
Flexible & Quick Tooling Changeover
Offers outstanding adaptability for various box sizes. Operators can quickly swap out tooling and templates with simple adjustments, making it perfect for handling diverse product specifications.
Triple Safety Protection System
1. Auto-Positioning: Features an automatic positioning mechanism for products smaller than the carton size, ensuring smooth and jam-free insertion.
2. Overload Protection: The main drive motor is equipped with a highly sensitive overload protection device that automatically shuts down the machine in case of abnormality.
3. Safety Cover (Optional): An elegant, flip-open safety protective hood can be customized to ensure maximum safety for operators.

Technical Specifications

Parameter	Technical Data
Encasing Speed	30-60 boxes/min
Box Quality Requirement	300g/m² or 400g/m² White Cardboard
Box Dimension Range (L x W x H)	(200 ~ 460) x (30 ~ 60) x (30 ~ 60) mm
Working Pressure	0.6 - 0.9 Mpa
Air Consumption	< 5 m³/h
Power Supply	380V, 3-Phase Alternating Current, 50Hz
Motor Power	5 KW
Machine Dimension (L x W x H)	4100 x 1600 x 1900 mm

Frequently Asked Questions

How quiet is the LK-C500 compared to other cartoning machines?

The LK-C500 operates at under 80 dB — significantly quieter than traditional machines at 85-90 dB. This reduces operator fatigue, improves concentration, and helps factories meet occupational noise regulations.

What carton size range can the LK-C500 accommodate? Is changeover complicated?

Carton range: Length 200-460mm, Width 30-60mm, Height 30-60mm — covering most foil roll cartons. Modular design enables size changeover in 15-20 minutes via simple handwheel adjustments. No expensive mold replacement required.

How do we restart the machine after overload protection is triggered?

Remove the jammed material or deformed carton, close the protective cover, then press "Fault Reset" on the touchscreen. The machine restarts with one touch — no complex recalibration. Full recovery within 2 minutes, no tools required.

What carton quality specifications does the machine require?

Use 300g/m² or 400g/m² white cardboard. Crease lines should be uniformly scored, and cardboard must be properly dried (avoid moisture deformation or excessive brittleness). This ensures stable box-opening at 30-60 boxes/min.

How does the photoelectric detection system help save packaging materials?

High-precision sensors detect missing or misaligned products and instantly signal the PLC to stop box feeding and glue spraying. This eliminates empty packages and wasted adhesive, significantly reducing material costs.

Is the safety protective cover standard equipment? Does it affect daily operation?

The cover is a flexible customization option (CE/EHS compliant). High-transparency material allows full visibility during production, so it does not interfere with daily operation or inspection.

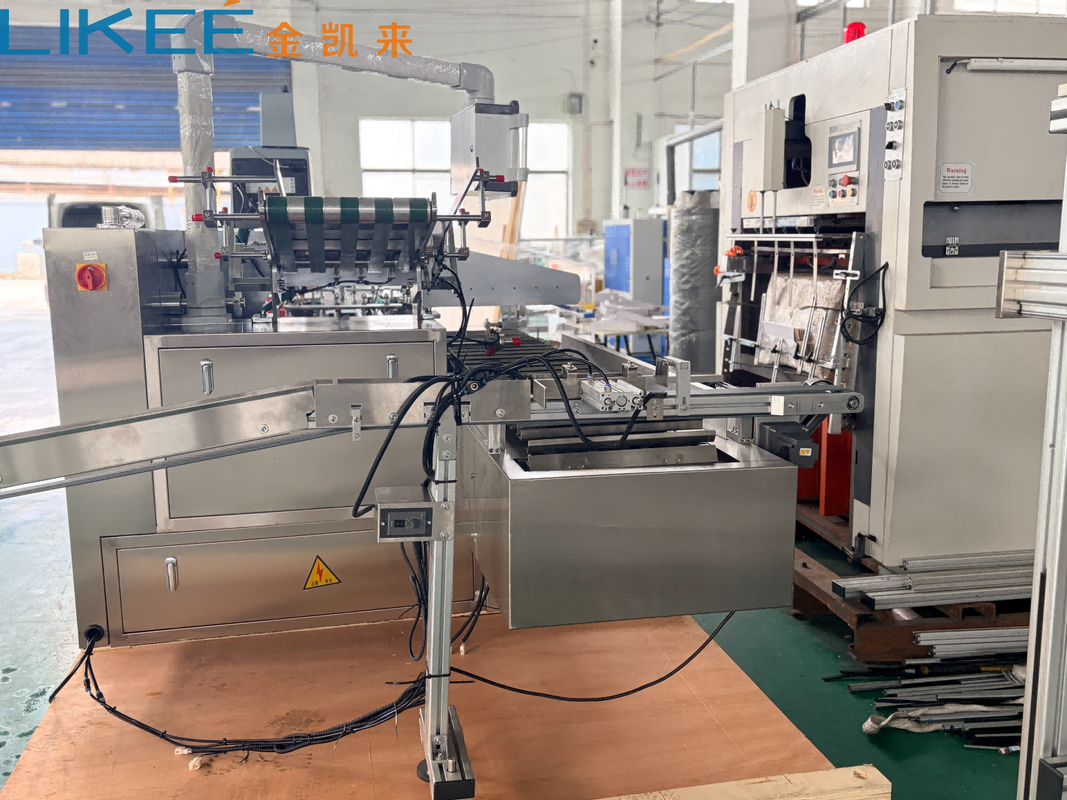

Machine Display
